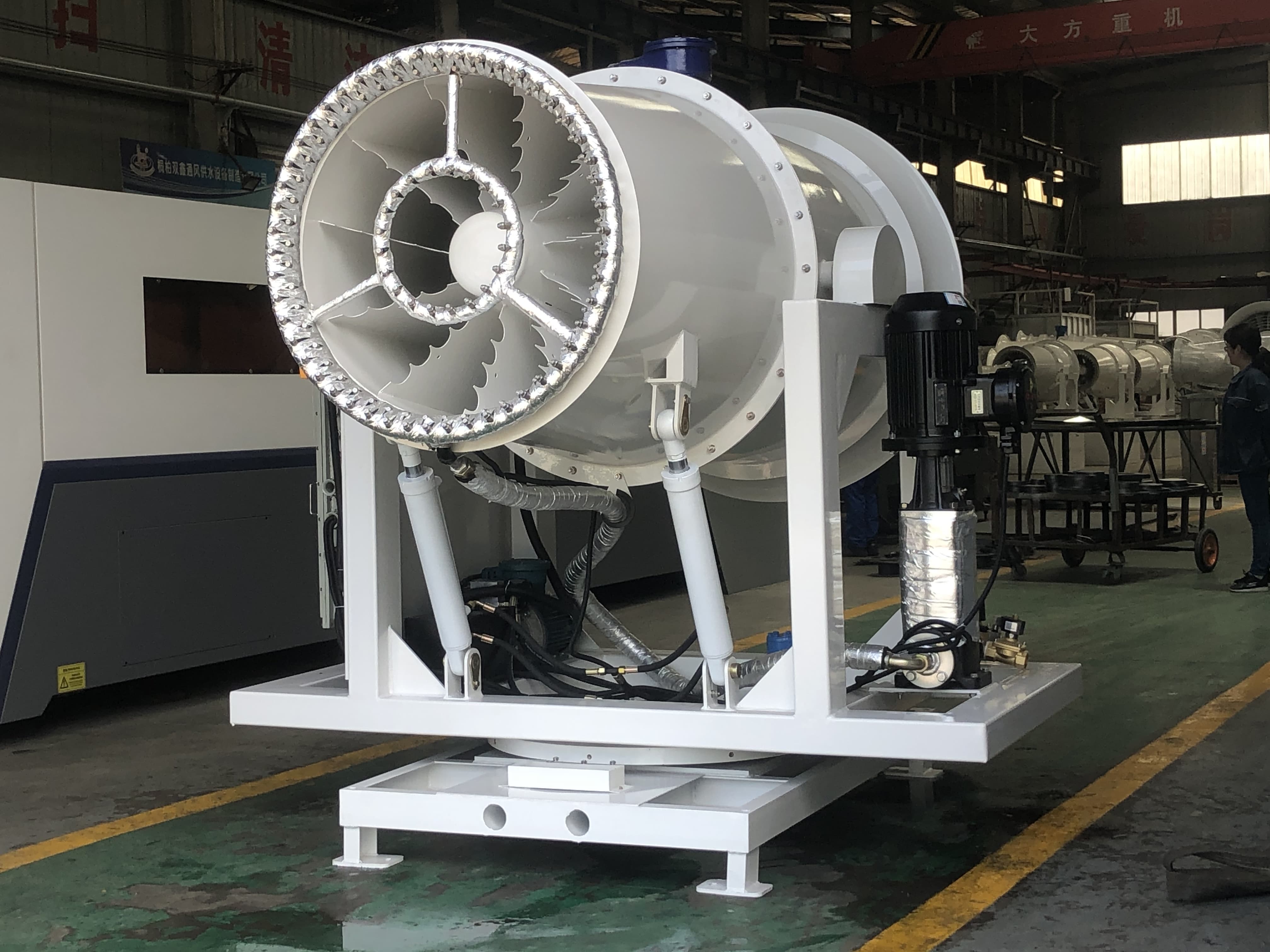

150M fog cannon for dust control used in quarry site, constructions site, coal mining sites.
Model Number:YT-120
Place of Origin:China
Added:2024-07-04
Views:
Keywords:fog cannon,mist cannon,dust control, dust suppression
Next Previous

Detailed introduction

Application Fields:

1. Coal mines/Coal storage yard.

2. Quarry site

3. Stone Crushing plant

4. Loading/unloading Port

5. Steel/chemical/cement plants

6. Demolition/construction site

7. Agricultural pesticide spraying

8. Water Spray and evaporation.



Product options:

-Fog cannon with distance from 30m to 150m.

-Anti-Explosive fog cannon

-Anti-freeze fog cannon

-Noise Reduction fog cannon

-Stainless steel fog cannon

Features:

1. Rotating left and side from 0-180°, pitch angle 0-30° which ensures the fog cannon can cover a wide area.

2. Both Local control and remote control( Max 100m control distance). PLC automatic control customized available.

3. Stainless fog cannon available for sea water source.

4. Wooden carton package for long journey sea shipping.

5. Can do various color.

6. Long time use and one year after sales policy.


120M Fog Cannon Machine Data Sheet



Model

YT-120

Max covering aream2

45216m²

Mist diamater

≥120um

Fan power

75kw

Water pump power

15kw

Total Power

About 92.2kw

Water pump type

Multi stage stainless steel centrifugal pump

Water pump pressure

0-3.5MPa

Water pump flow

16-20T/H

Wind Barrel Length

2800mm

Wind Barrel Diamater

1200mm

No. Of Water Ring

2

Nozzle No.

120pcs

Nozzle Hole Diamater

1.2mm

Waterway Material

304 Stainless Steel

Machine Overall Height

About 2770mm

Left and Right Rotating

0-180° Adjustable

Tilt Angle

0-30° Adjustable

Title Driven Device

Hydraulic Pump Station

Hydraulic Pump Station Power

2.2kW

Control Method

Local Control/ Remote Controller

Protection Level

IP55

Working Temperature

0-55℃(Anti-freeze type available)

Water Requirement

PH6-8,Suspended solids ≤ 50ppm

Power Supply

Customizable AC380/415/44050/60Hz Three Phase Four Wire System

Machine Weight

About 2600KG

High Quality Carbon Steel Material For The Entire Machine

Spray painting and baking paint technology is used for coating, which adopts shot blasting and rust removal treatment. The coating is long-lasting and has a substantial improvement compared to ordinary spray painting, with strong anti-corrosion properties.

Fan Blade

Aluminum alloy fan blades, with high strength,

Do not produce sparks when they rub against the inner wall of the air duct, making them safer to use.
