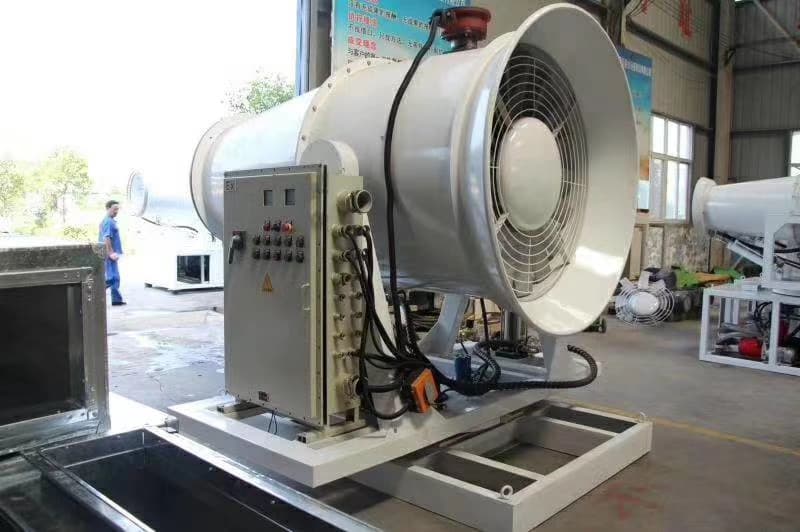

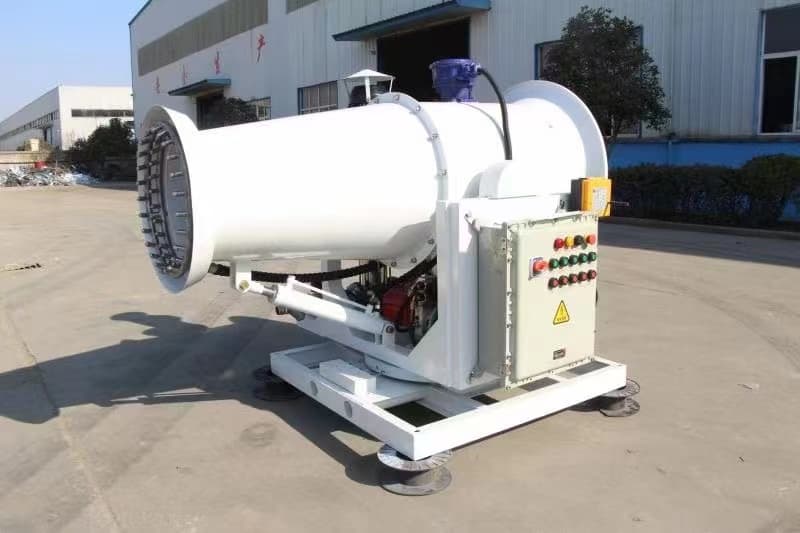

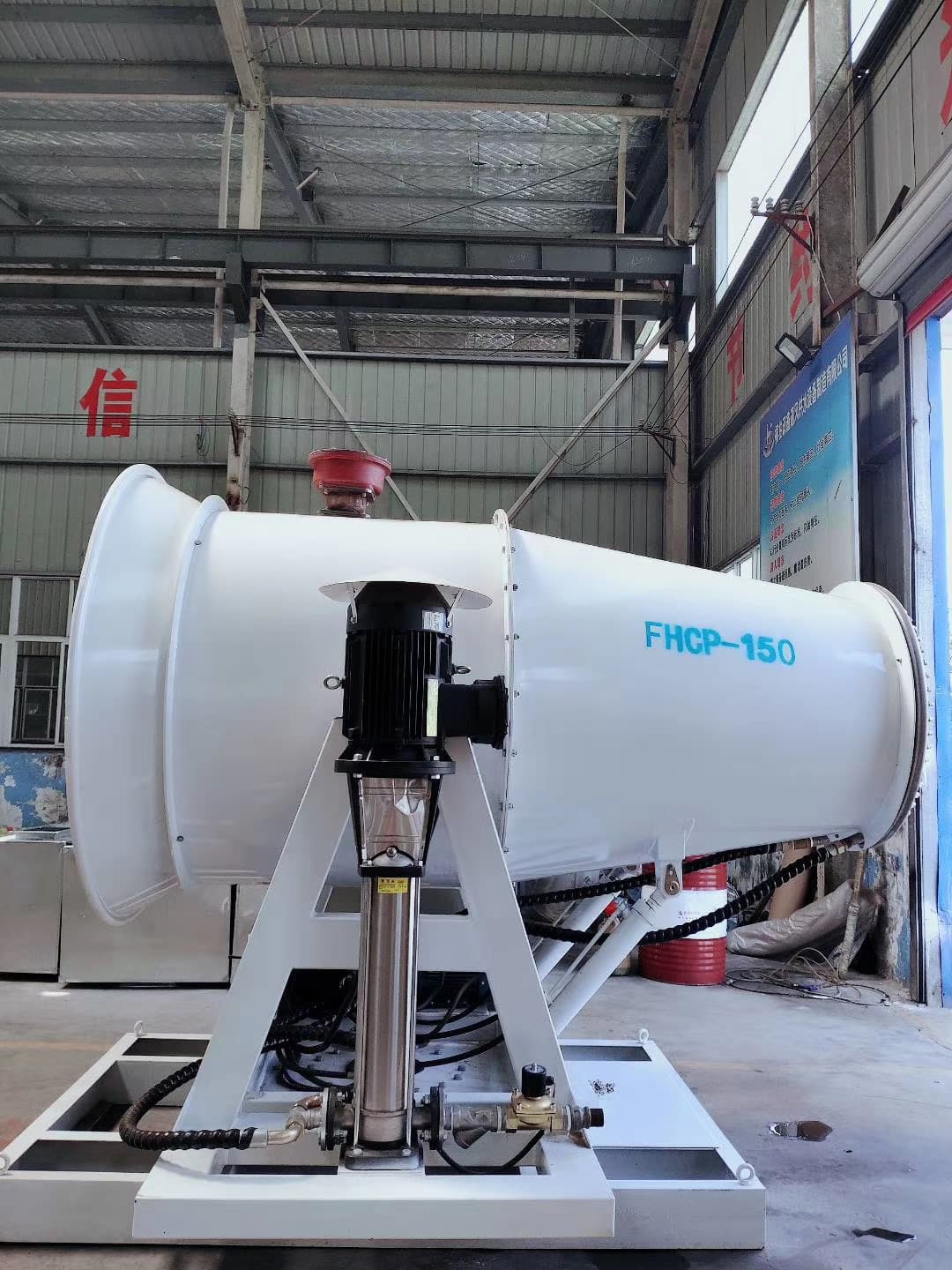

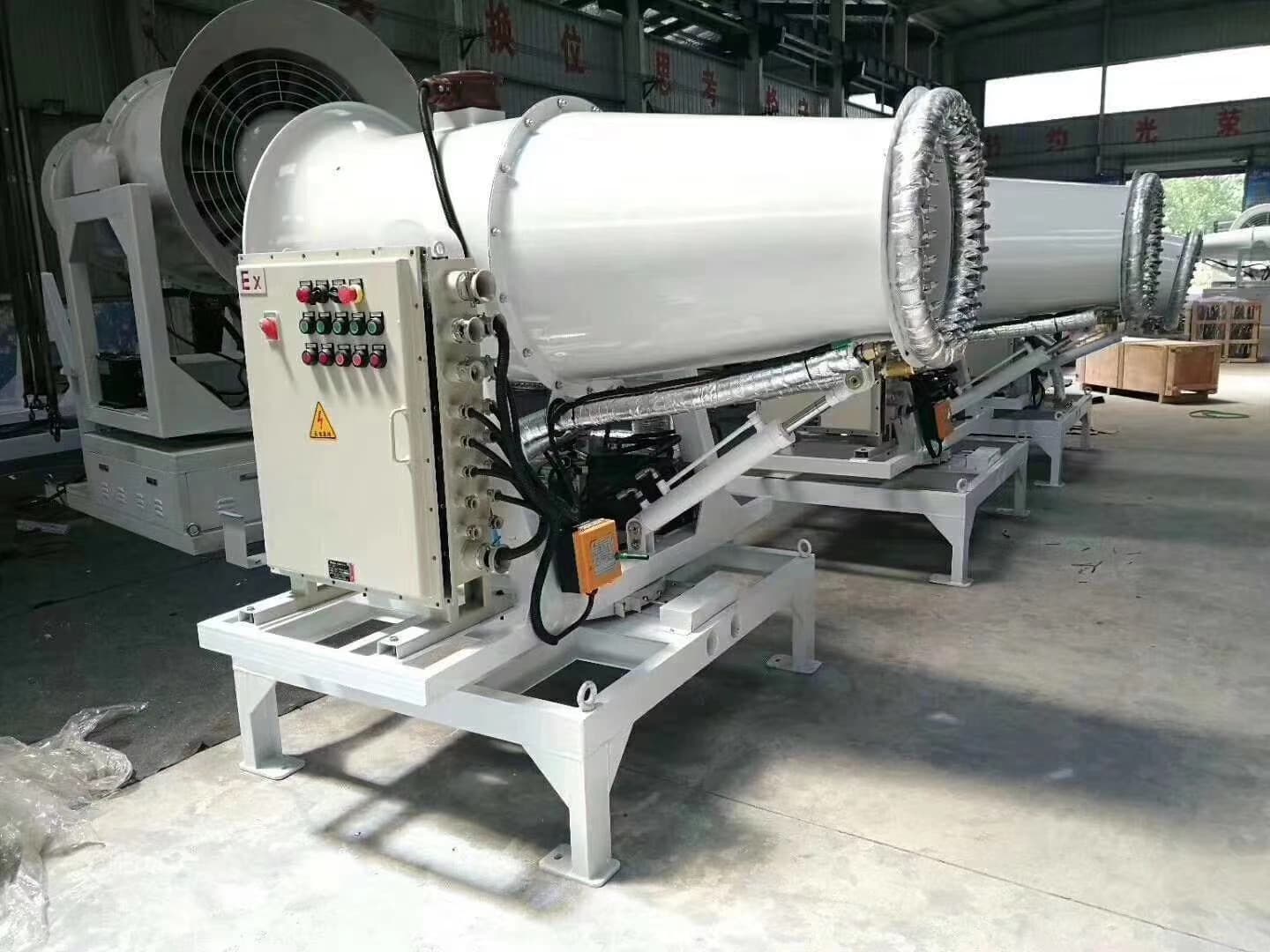

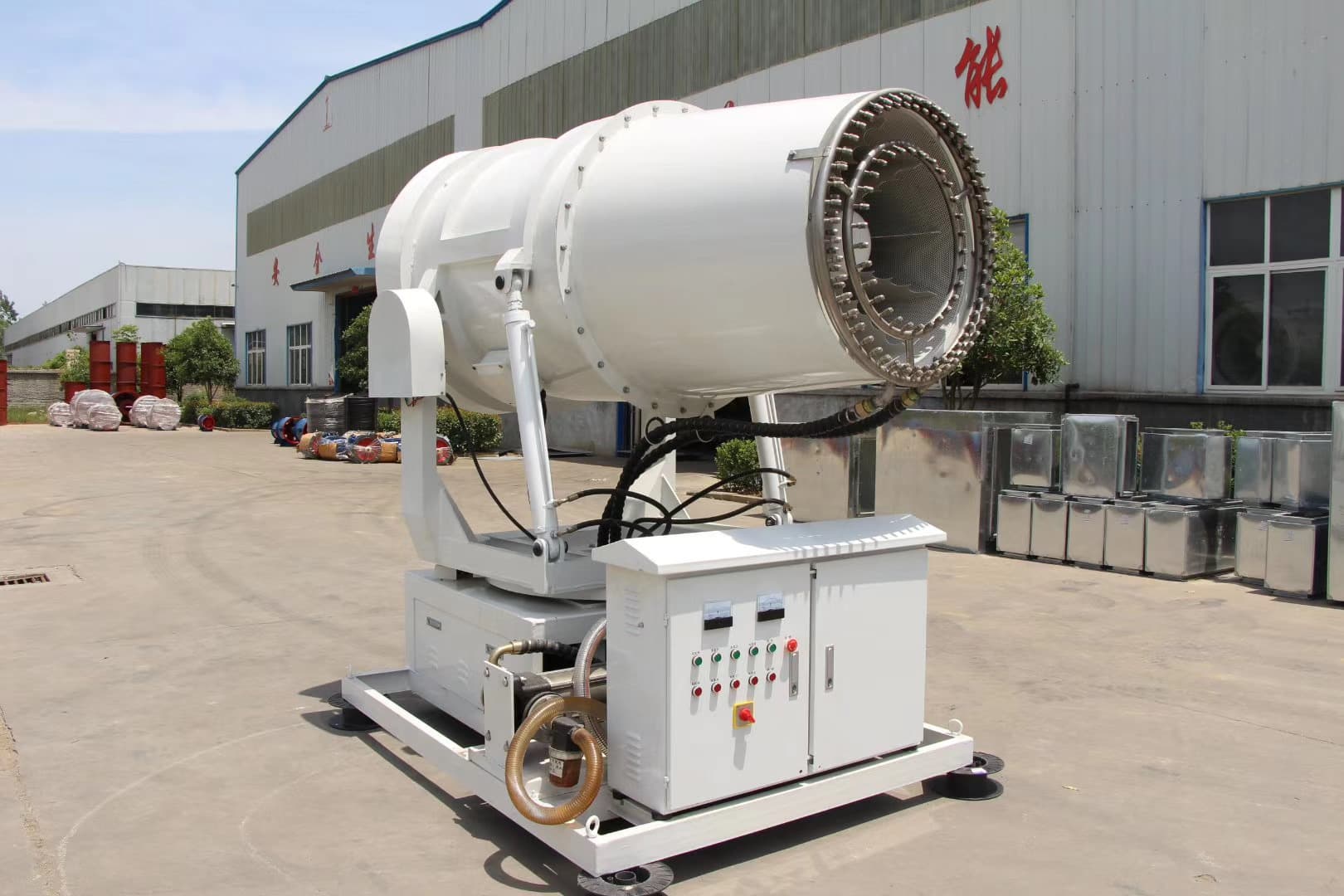

150m Throw Distance Split Type Fog Cannon Machine
1. Product Introduction
The 150m Throw Distance Split Type Fog Cannon Machine can directly use 380V mains power, or can use diesel generator set to provide power, whether it is placed on a concrete pouring platform or a mobile vehicle; it is simple to operate, through manual operation or remote control, at the level Angle or adjust the spray angle up and down, it is safe and reliable to use.
2.Product Parameter (Specification)
Item | Parameter | Mark | |
Operation Method | / | Local or Remote Control | Remote Control Distance 100m |
Technical Parameters | Throw Distance | 150m | |
Water Requirements | Normal Pressure PH 6-8 Impurities≤50PPm | ||
Electricity Requirement | Voltage: AC380V,50HZ Power 14.55KW | ||
Mist | 20~100um | ||
Water Consumption | 40-60（l/min） | ||
Pitch Angle | -10°～40° | ||
Horizontal rotation angle | 320° | ||
Working temperature | -15℃-50 ℃ | Antifreeze | |
Protection Class | No more than IP55 | ||
Start Method | Buck start | ||
Rotary drive | Electro-hydraulic/ slewing bearing | ||
Pitch drive | electro-hydraulic | ||
Control Method | Manual or remote Controller | ||
Impeller material | Aluminum alloy casting | ||
Nozzle Material | SS304 | ||
Nozzle number | 50 | ||
Pump model | 4-170 | SS Vertical Centrifugal Pump | |
Nozzle ring | SS304 |
3.Product Feature And Application
Features:
It is suitable for dust control on the working surface, and the dustproof effect is obvious.
Strong skill, long range and wide coverage.
t can be fixedly installed or installed on the towing vehicle.
The operation is safe and flexible, and can be operated by remote control.
Application
Fog cannons are mostly used for dust removal in urban streets, construction sites and coal yards. The principle of the fog cannon is to apply pressure to the water through high pressure to become particles similar to the dust in the air, absorb the dust in the air, and decrease after the weight increases. It also humidifies the air and lowers the temperature.
4.Product Details
1) The 100% copper motor, it is more durable, less calorific, longer life and quieter.
2) The main body material we use is national standard Q235 carbon steel, which is thick, strong and stable. Others use iron sheet thin carbon steel.
3) Aluminum alloy fan blades, high hardness, not easy to deform, light weight, more power saving, large air volume, and higher reliability.
4) The high-pressure pump is equipped with a multi-stage stainless steel centrifugal pump high-pressure hose and a metal pipe with an external water inlet filter. While others equip with plastic tube.
FAQ:
Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.
Q: How long is your delivery time?
A: It is according to the model and quantity. Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.
