Mobile Water Tank Fog Cannon



1. Product Introduction

Mobile Water Tank Fog Cannon is a industrial design, while meeting the safety, reliability, convenience and performance indicators of the use of fog cannon, the fog cannon is beautiful, fashionable, novel and exquisite in craftsmanship. The air duct and components are all sandblasted and then sprayed with two primers and one topcoat. The paint is sprayed and dust-suppressed. The car is equipped with a power take-off on the gearbox. The power is transmitted to the sprinkler pump, and the function of sprinkler is realized.





2. Product Parameter (Specification)



Let’s take 30m fog cannon for example.

Throw distance

30M

Power

local industrial electricity

Total power

5.05Kw

Spray flow

16-20l/min adjustable

Coverage

2800㎡

NO. of nozzles

18/24 sets

Pitch angle

-5°-40°adjustable

Hydraulic station power

0.55Kw

Horizontal rotation angle

0-340°adjustable

Nozzle and ring material

Stainless steel

Fan power

3Kw

Water inlet

DN25 out silk

Pump power

1.5Kw

Painting

Plastic spray

Start up mode

star delta start

Control

Manual/remote control

Rotary driving mode

Hydraulic  station

Customized functions

Anti-explosion/freeze-proofing/noise reduction

Size

1350*800*1766mm

Weight

350KG

Package

Wooden case

Package size

1500*1000*2100mm





3. Product Feature And Application



Features:

Mobile typefog cannon, easy to move, very convenient.

It can be fixedly installed or installed on the towing vehicle.

The operation is safe and flexible, and can be operated by remote control.

Effectively avoid the contamination of the workers by the drugs.

The water consumption is small, and the water mist covers a large area of dust.

Application

1, Construction sites, demolition and other construction projects, municipal infrastructure, construction waste, waste residues, loading and unloading and stacking and other activities that generate dust pollution, etc.

2, Material transportation, such as the transportation of coal char, sand and gravel, earthwork, garbage, slag and other vehicles that are prone to dust and pollutants, as well as heavy-duty vehicles, during transportation due to material spillage or leakage, resulting in dust pollution control.

3, Raise dust on the ground in the open air, implement greening projects, and effectively carry out greening spraying and dust reduction measures.





4.Product Details



The multi-stage stainless steel centrifugal pump has stronger corrosion resistance, excellent energy saving, low noise, easy maintenance and durability.





The frame-type design slewing bearing ensures that the equipment can stably rotate up and down, left and right.







Hydraulic electric push rod, stable operation, low energy consumption, large up and down pitching angle range, dust proof and waterproof, long service life.

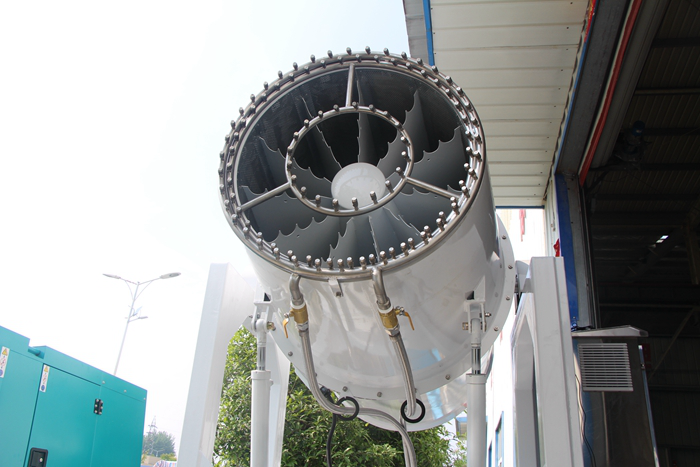

The stainless steel double water ring and the precision stainless steel nozzle are evenly distributed, so that the mist volume is larger, the mist particles are more fine and fine, the water consumption is controllable, and the dust suppression effect is good.





FAQ:

Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.



Q: How long is your delivery time?

 A: It is according to the model and quantity. Generally it is 3-5 days if the machines are in stock.

 It will be 15-30 days if you want to customize the machines.



Q: Do you provide samples? Is it free or extra?

  A: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.
