Application Fields:
1. Coal mines/Coal storage yard.
2. Quarry site
3. Stone Crushing plant
4. Loading/unloading Port
5. Steel/chemical/cement plants
6. Demolition/construction site
7. Agricultural pesticide spraying
8. Water Spray and evaporation.
Product options:
-Fog cannon with distance from 30m to 150m.
-Anti-Explosive fog cannon
-Anti-freeze fog cannon
-Noise Reduction fog cannon
-Stainless steel fog cannon
Features:
1. Rotating left and side from 0-180°, pitch angle 0-30° which ensures the fog cannon can cover a wide area.
2. Both Local control and remote control( Max 100m control distance). PLC automatic control customized available.
3. Stainless fog cannon available for sea water source.

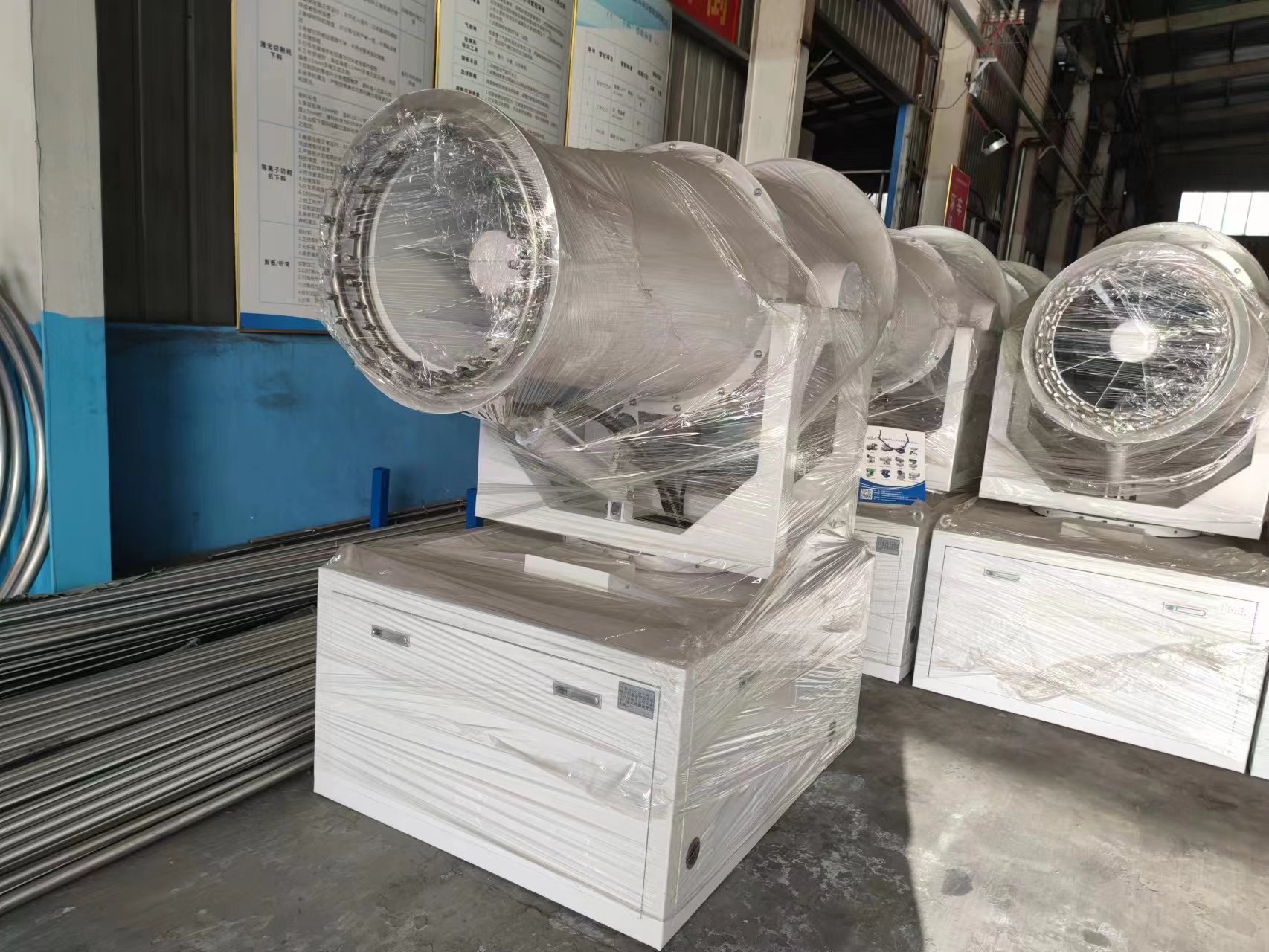

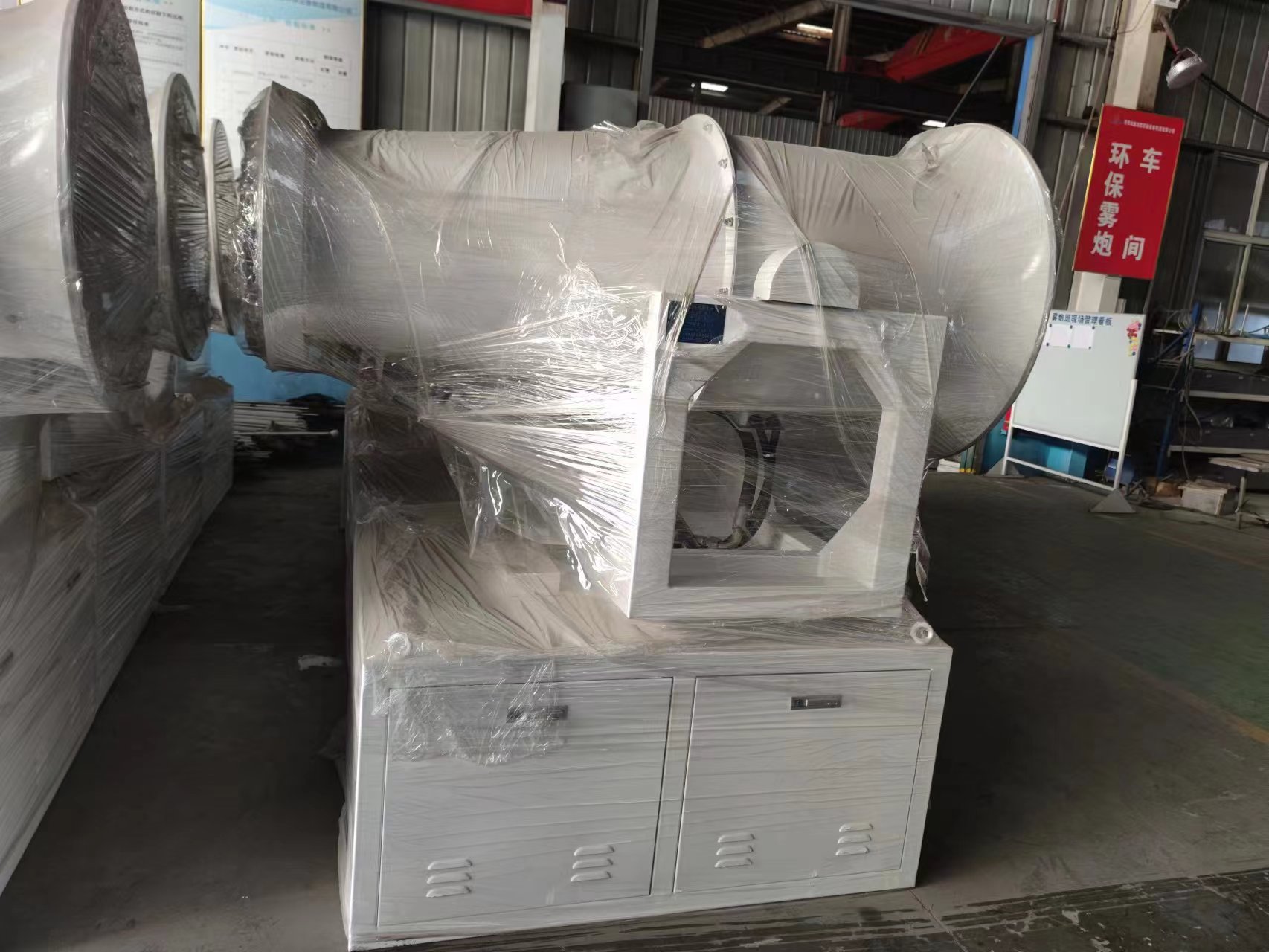

4. Wooden carton package for long journey sea shipping.
5. Can do various color.
6. Long time use and one year after sales policy.

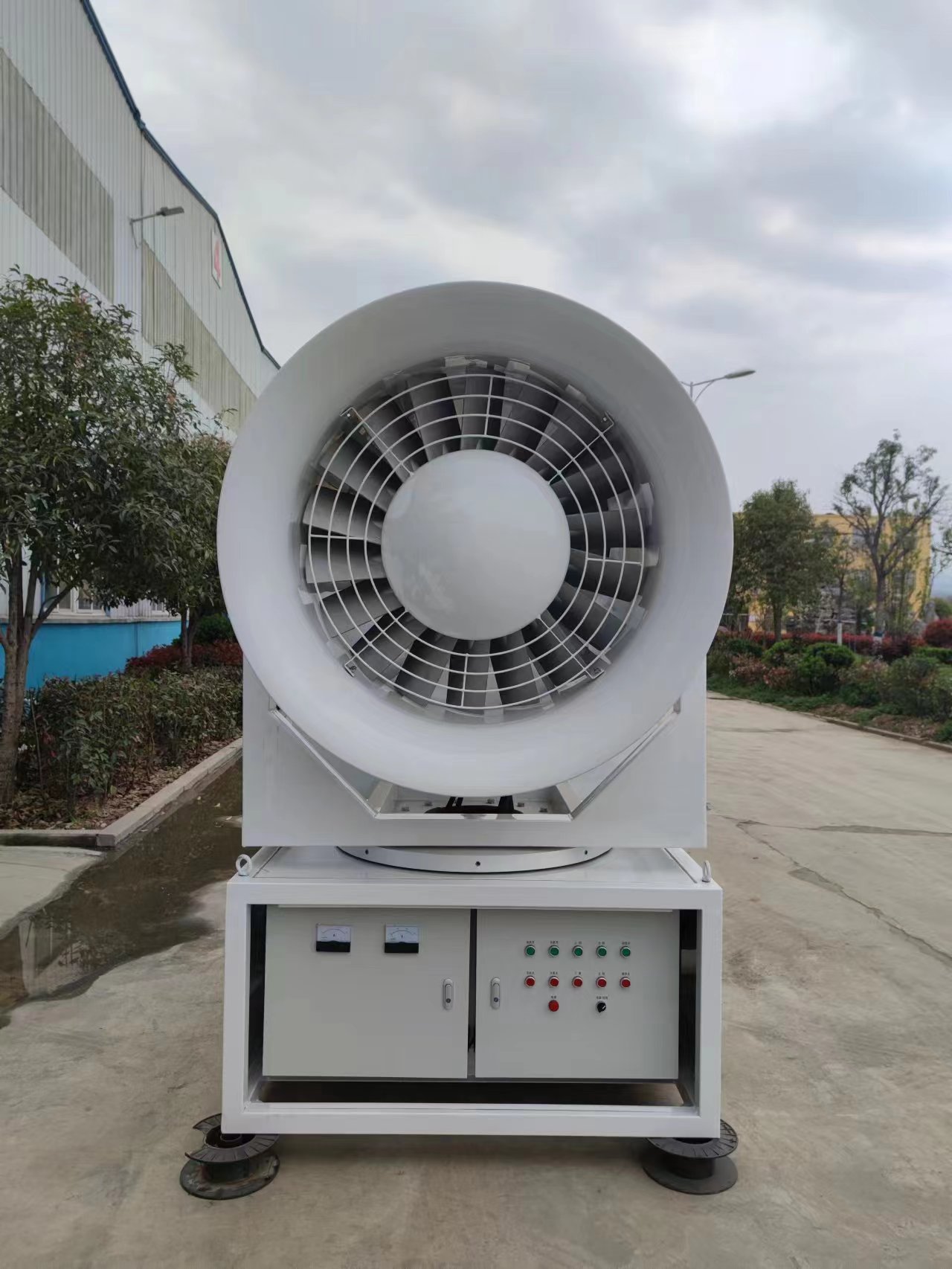

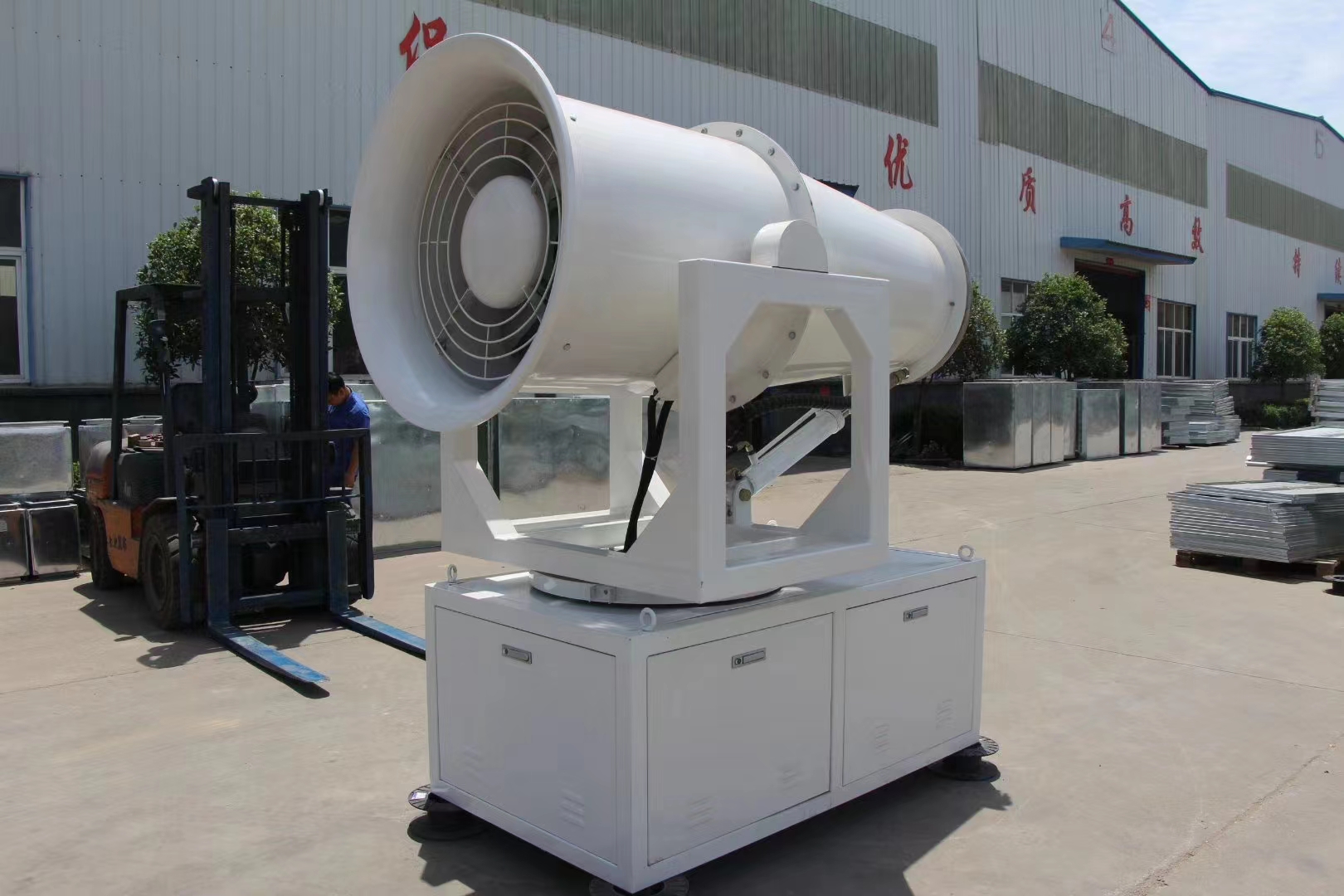

60M Fog Cannon Machine Data Sheet
Model | YT-60 |
Max covering area（m2） | 11304m² |
Mist diamater | 20-100um |
Fan power | 18.5kw |
Water pump power | 4kw |
Total Power | About 23.05kw |
Water pump type | Multi stage stainless steel centrifugal pump |
Water pump pressure | 0-3.5MPa |
Water pump flow | 4-6 T/H |
Wind Barrel Length | 1930mm |
Wind Barrel Diamater | 750mm |
No. Of Water Ring | 2 |
Nozzle No. | 60pcs |
Nozzle Hole Diamater | 1.2mm |
Waterway Material | 304 Stainless Steel |
Machine Overall Height | About 2000mm |
Left and Right Rotating | 0-180° Adjustable |
Tilt Angle | 0-30° Adjustable |
Title Driven Device | Hydraulic Pump Station |
Control Method | Local Control/ Remote Controller |
Protection Level | IP55 |
Working Temperature | 0-55℃（Anti-freeze type available） |
Water Requirement | PH6-8，Suspended solids ≤ 50ppm |
Power Supply | Customizable AC380/415/440v，50/60HzThree Phase Four Wire System |
Machine Weight | About 750KG |
High Quality Carbon Steel Material For The Entire Machine | Spray painting and baking paint technology is used for coating, which adopts shot blasting and rust removal treatment. The coating is long-lasting and has a substantial improvement compared to ordinary spray painting, with strong anti-corrosion properties. |
Fan Blade | l Aluminum alloy fan blades, with high strength, l Do not produce sparks when they rub against the inner wall of the air duct, making them safer to use. |
